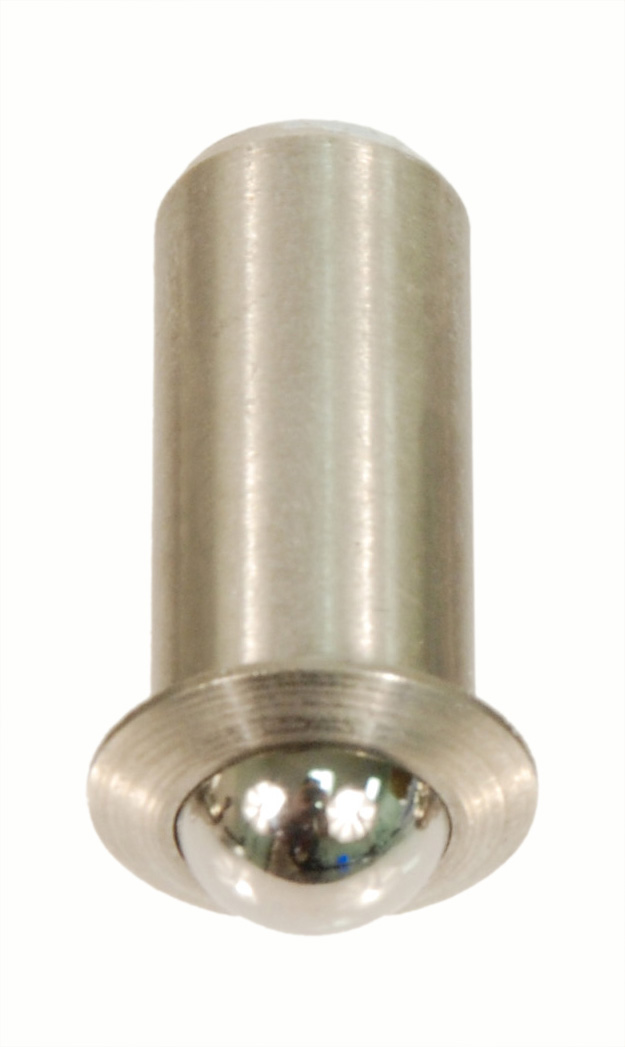

Stainless Steel Body – Stainless Steel Ball

Part #: 10427 Click to view or download CAD Drawing

Material: Stainless Steel
Pressure: Heavy
End Pressure Start (lbs.): 6
End Pressure Full (lbs.): 13
Body Length: .481
Body Diameter: .250
Ball Diameter: .187
Projection: .070
Flange Thickness: .044
Flange Outside Diameter: 0.31
Category: Heavy Pressure
