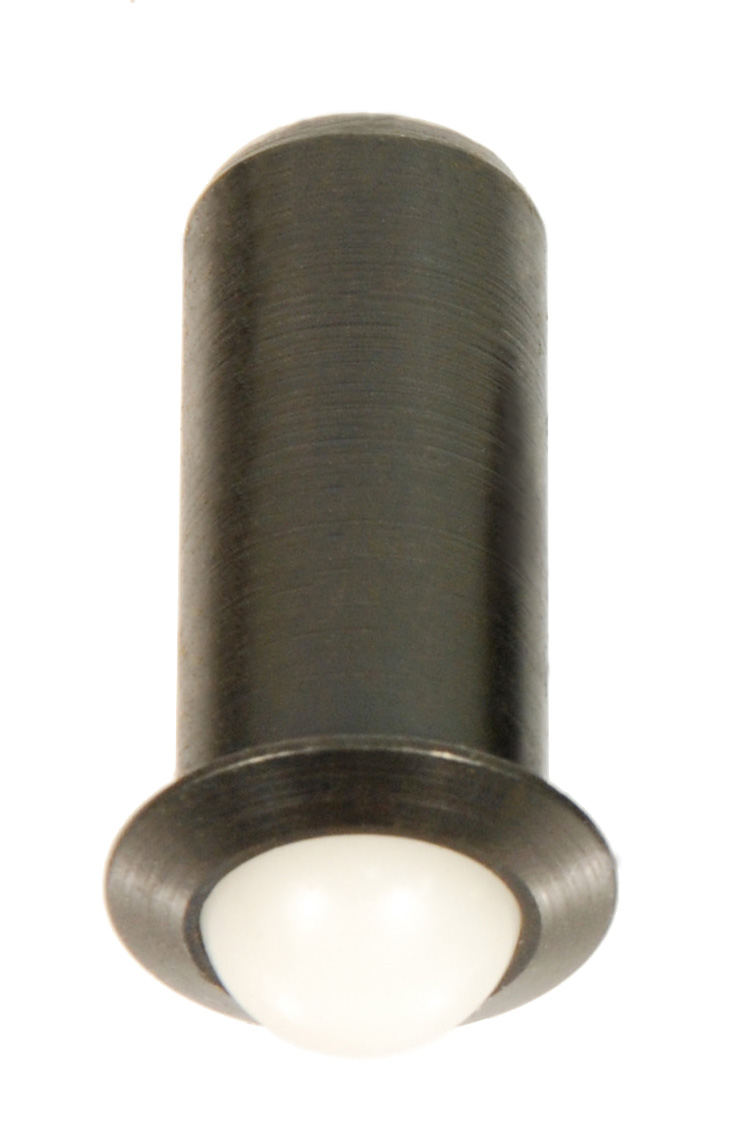

Steel Body – Delrin Nose

Part #: 10445 Click to view or download CAD Drawing

Material: Steel
Pressure: Heavy
End Pressure Start (lbs.): 2
End Pressure Full (lbs.): 5
Body Length: .252
Body Diameter: .125
Ball Diameter: .093
Projection: .035
Flange Thickness: .032
Flange Outside Diameter: 0.187
Category: Heavy Pressure
