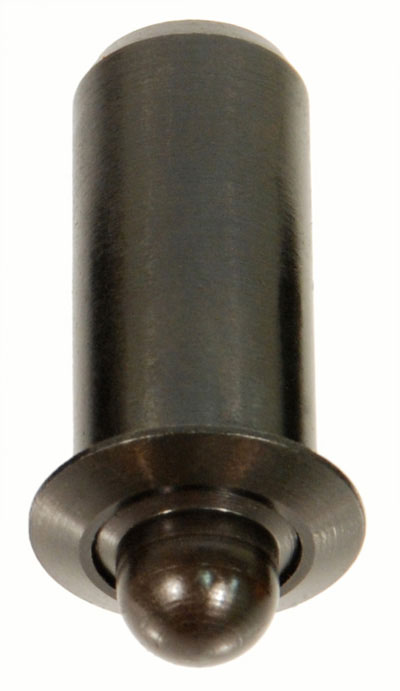

Stainless Steel Body – Stainless Steel Nose – 10528

Part #: 10528 Click to view or download CAD Drawing

Material: Stainless Steel
Pressure: Heavy
End Pressure Start (lbs.): 1.5
End Pressure Full (lbs.): 4.5
Body Length: .405
Body Diameter: .188
Nose Diameter: .121
Projection: .156
Flange Thickness: .035
Flange Outside Diameter: 0.248
Category: Heavy Pressure
